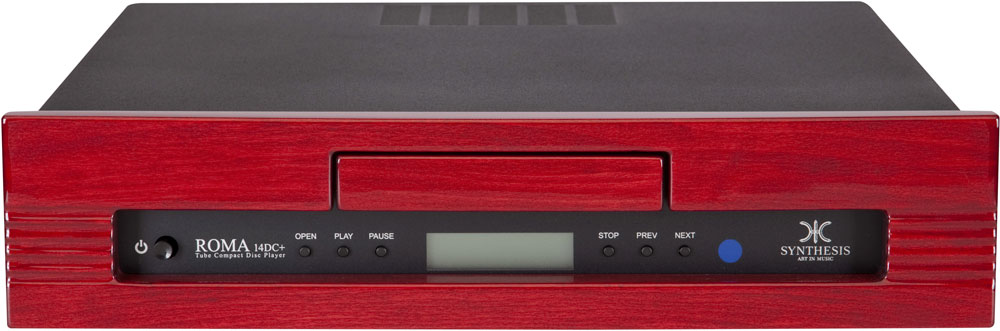

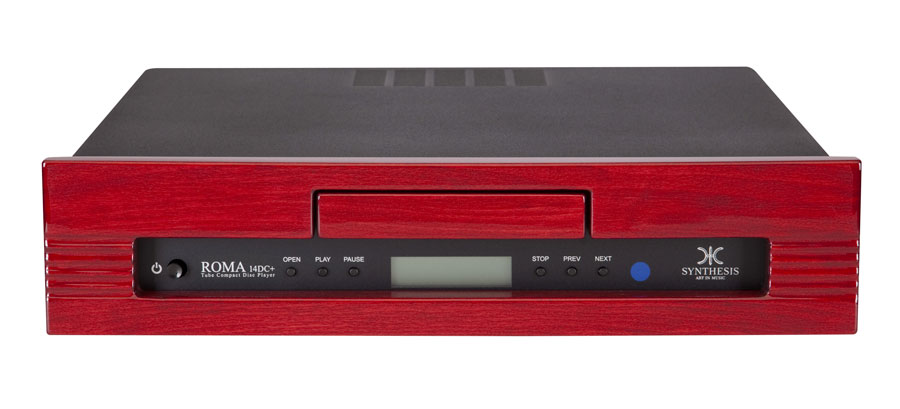

Roma 14DC+

Tube Compact Disc Player with Digital Inputs

Synthesis is set to release a new Compact Disc Player ROMA14DC+.

Using a ECC88/6DJ8 on the output stage for warm sound characteristics. The particularly configuration is used for to obtain a very low output impedance and extremely large bandwidth.

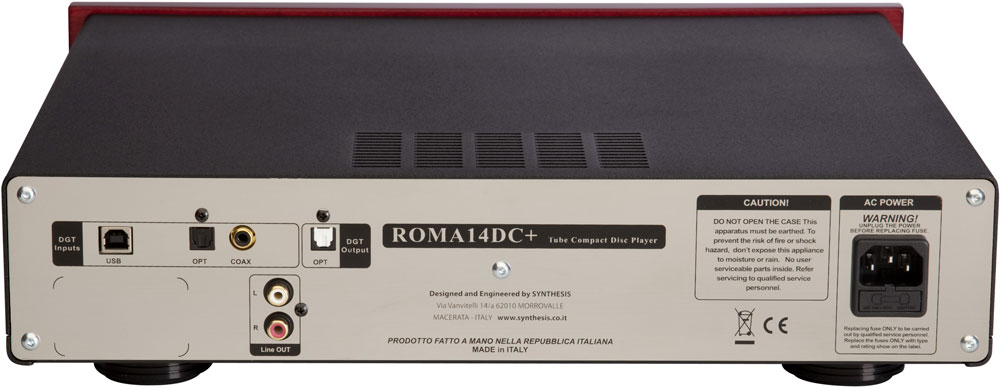

The Roma 14DC+ has USB "B" type, DSD 5,6MHz and optical input. The 32Bits of resolution give you a fantastic sound stage and a perfect sound reproduction. The TEAC mechanism is specially developed for audio reproduction guarantee at this CD Player high quality performances.


Specifications

Playable formats

CD-DA, CD-R, CDRW

Digital inputs!1 Toslink Optical
1 Coaxial (S/PDIF)
1 USB “B” type Windows/Mac/iOs/Android

Digital output

1 Toslink Optical

D/A Converter

AK4495SEQ
32bit 768KHz

Max Resolution

24 bit 192KHz (OPT)
32 bit 384KHz (USB)
DSD up to 5,6MHz (USB)

Gain stage (1 ch.)

1 x 6922/ECC88

Output level

1,5V RMS

Output type

Variable

Output impedance

< 200 ohm

S/N ratio

> 95dB “A” weighted

Frequency response

from 20Hz to 20Khz ±1dB

Dimensions (w,d,h)

410x390x95mm

Weight

5Kg

Line power

117 / 230 / 245 Vac, 50/60 Hz (see rear label)

Fuse

See rear label

Power consumption

40W max

PC requirements

1GHz processor, 512MB RAM, USB 2.0 port

Remote control

Body

Anodized black aluminium

Transmission type

Infrared

Protocol

RC5

Functions

Play, Pause, Stop, Mode, Prev, Next,track selection

Batteries

2 x CR2032

Weight

200g
