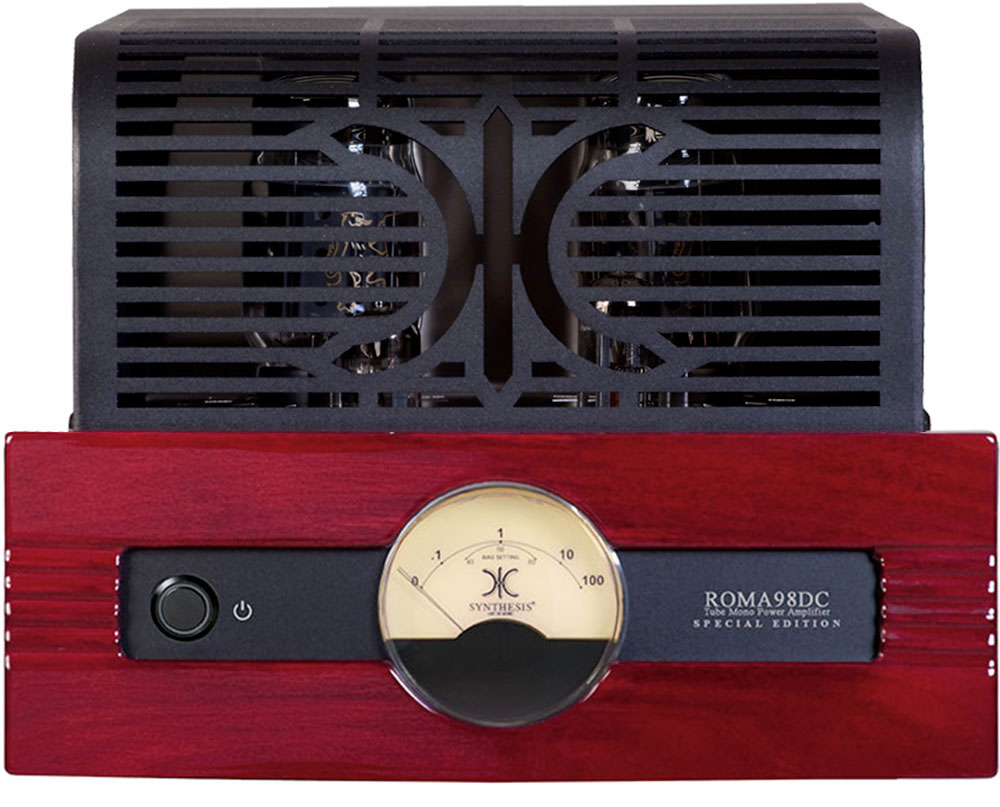

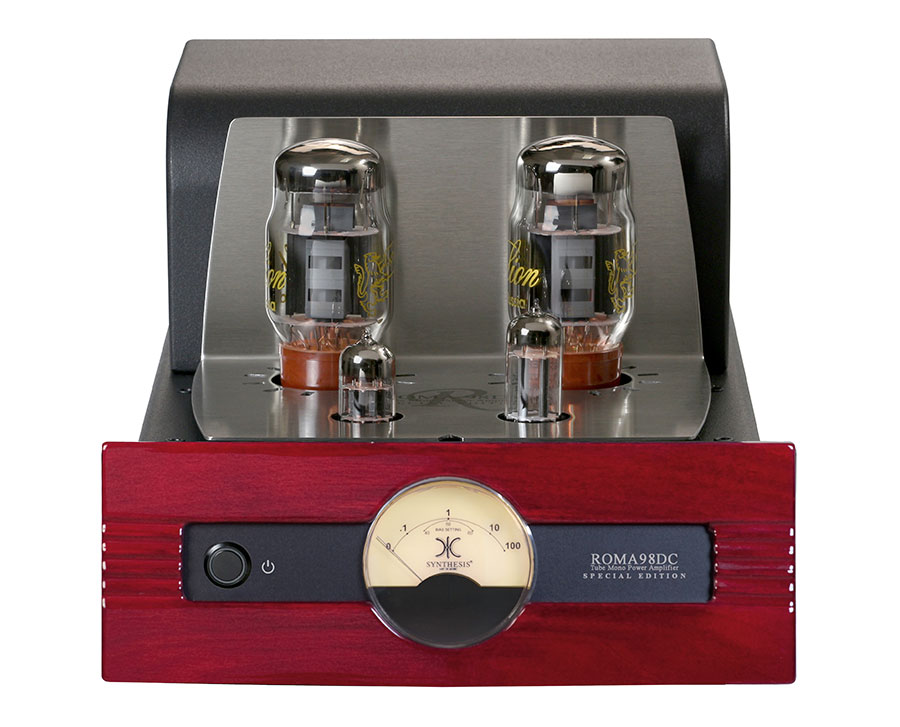

Roma 98DC Special Edition

Power stage (1 ch.)

2 X KT66

Input stage (1 ch.)

1 X 12AY7

Driver stage (1 ch.)

1 X 6CG7

Input impedance

100KOhm

Input sensitivity

600mV RMS for max power

Output tap

4 to 8 Ohm

Configuration

Ultra linear 43% tap

Power output (1 ch., THD < 1%)

40W RMS @ 6Ohm

Frequency response

from 20Hz to 20KHz ± 0.5dB

Distortion (MAX Power)

1% @ 1KHz

S/N ratio

>90dB “A” weighted

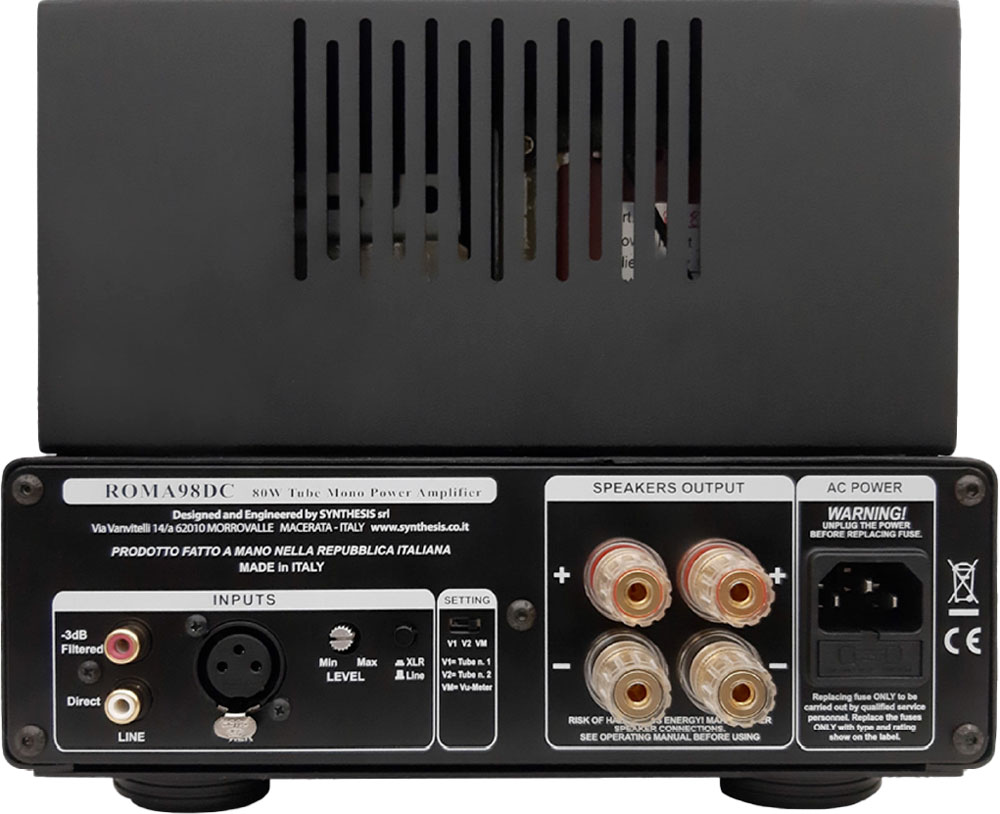

Inputs

1 Unbalanced Line RCA (Direct)
1 Unbalanced Line RCA “Filtered”
(3dB attenuation com­pared to the direct line. Further -3dB at 20Hz and 20KHz)
1 Balanced line XLR

Bias setting

Manual adjustment, independent for each power tube

Dimensions (w,d,h)

260x415x200mm

Weight

18Kg

Line power

117, 230, 245 Vac, 50/60 Hz (see rear label)

Fuse

See rear label

Power consumption

220W Max
