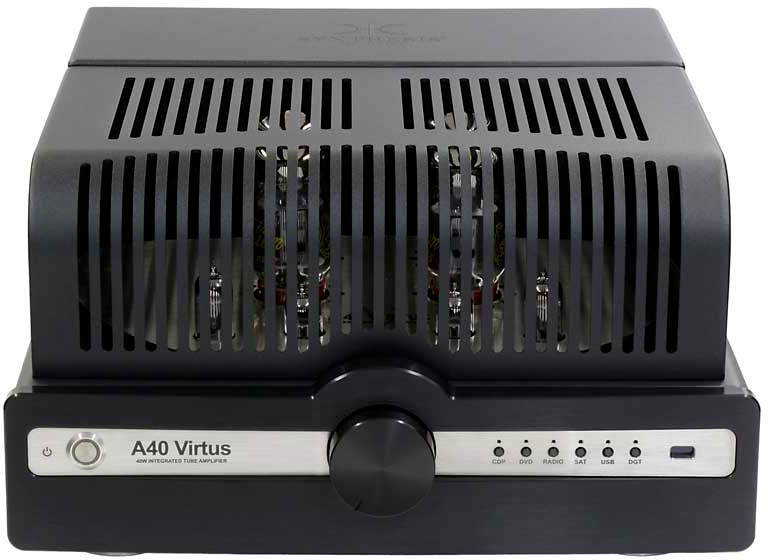

40W Integrated Stereo Tube Amplifier
New model of stereo tube amplifiers with DAC's on board, guaranteeing exceptional sonic performance from any digitai source. Made with the finest materials & advanced technology, this series is a sophisticated blend of research & experience. Designed without compromise far a rich sound & faithful music reproduction.
The A40Virtus provides a minimum of 40 watts per channel, power output from a pair of KT66's in Ultra-Linear (UL) - push/pull operation.
The A40Virtus features a newly designed custom output transformer resulting in a rich sound stage but with an authority that belies its 40Wpc.
- USB & S/PDIF input
For the first time we include an onboard 24Bit 192KHz Wolfson DAC for a extraordinary listening experience.
- DC Powered tube heater
Ali tubes, except KT66, have DC stabilised heater circuits to reduce hum noise to a near in-audible minimum.
- Output transformer
The Output transformer uses a Hi-Grade lron-Silicon for superb frequency reproduction & width. With this newly designed custom output transformer unique to the A40Virtus we are able to achieving a highly delicate & precise sound reproduction faithful to the originai recording.
- Mechanical chassis construction
The power supply & output transformers are held by an extremely rigid "H" structure that keeps the unit free from unwanted vibrations which further helps reduce unwanted noise to the tubes.
- Remote control
Featuring a superb CNC machined case it has a soft button design, perfectly matching the aesthetics for the "ACTION" series.
Four CNC machined aluminium feet with an insert of natural rubber. The depth & form of these rubber feet has been calculated to minimise vibrations of the amplifier in isolation from its surroundings.

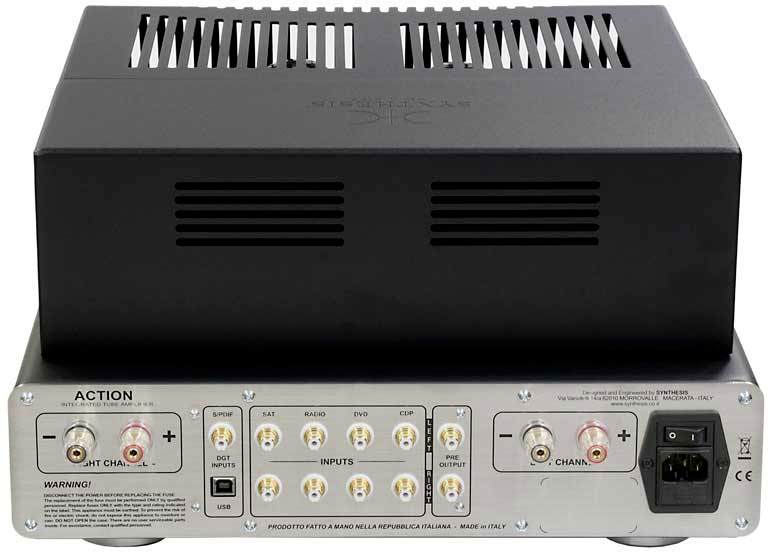

- Binding posts
Gold plated professional binding posts for a continued oxidisation free connection further improve sound refinement.
Gold plated ceramic sockets for a continued oxidisation free connection further improve sound refinement.
Components for the A40Virtus have been selected with great care throughout. Only the best available components are considered & all must undergo an exhaustive analysis of their sonic influence prior to final selection.
- Selected tubes
All tubes used are selected after 2 stage warm up. A fully computer monitored machine controls the process & at the end of this, selects the perfect tubes which are then matched for a perfect balance.
Power stage (1 ch.)
2 X KT66
Input stage (1 ch.)
1 X 12AX7/ECC83
Driver stage (1 ch.)
1 X 12BH7
75 Ohm (S/PDIF)
Push-Pull Ultra linear 43% tap
Power output (1 ch., THD < 1%)
40W RMS @ 6Ohm
from 20Hz to 20KHz ± 0.5dB
1% @ 1KHz (Max Power)
>90dB “A” weighted
4 line inputs
1 S/PDIF input
1 USB input
2 X WM8740, dual mono configuration,192KHz oversampling
PCM 32-192KHz, 16-24 bit
PCM 16bit 48KHz, standard audio device, no driver required
Pre out (variable level)
Manual adjustment, independent for each power tube
117, 230, 245 Vac 50/60 Hz (see rear label)
See rear label
Anodized black aluminium
Volume, mute, input selection, st-by
2 x CR2032
